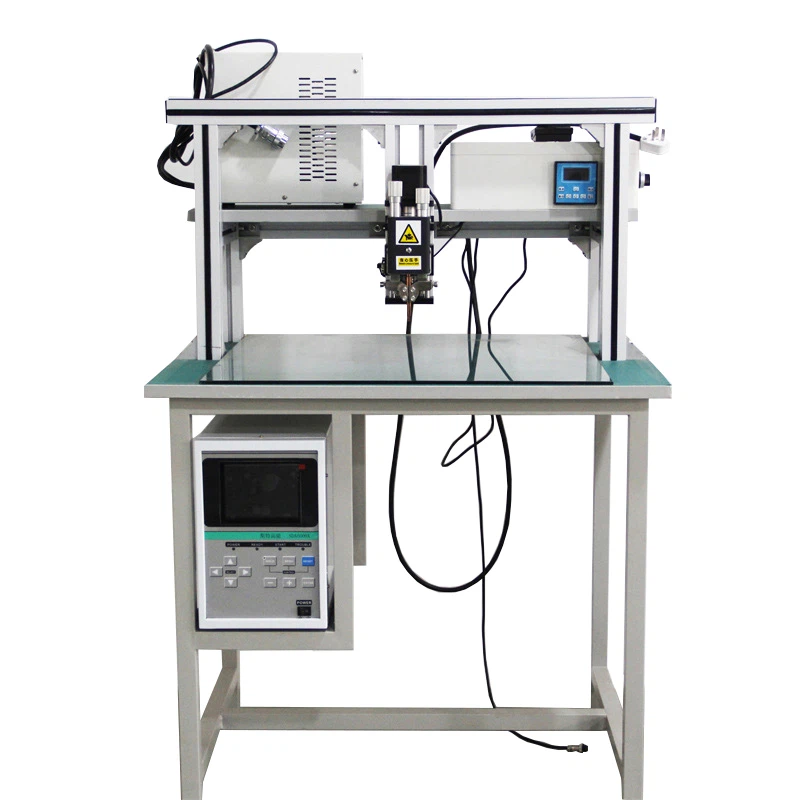

Lithium Ion Battery Spot Welding Machine
Model No.: ACEY-1000C
Battery Types: 14500/18650/21700/26650/32650/32700/32140/33140
Warranty: 1 year
MOQ: 1 set
Package: Plywood Case

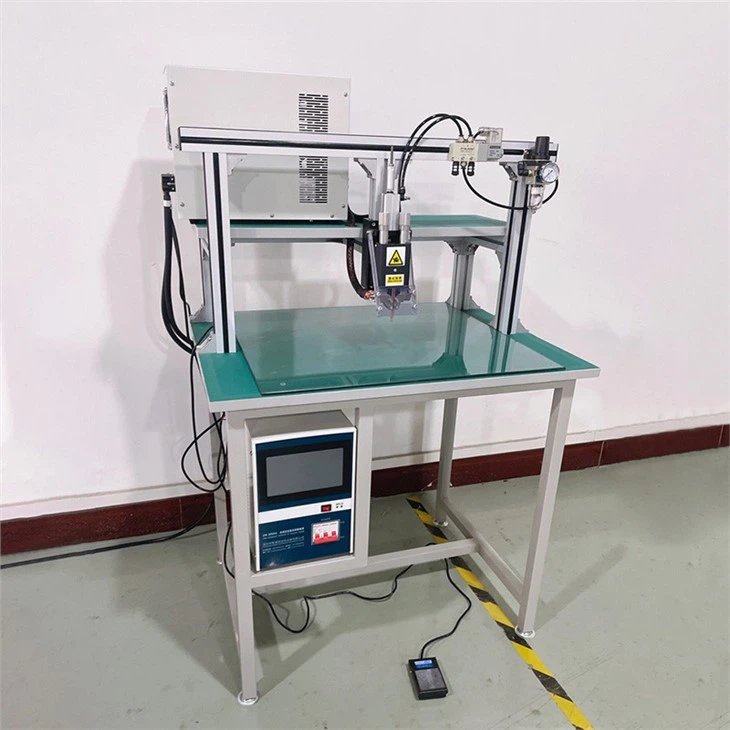

AC Gantry Spot Welding Machine for Battery Pack
Products Description
ACEY-1000C equipped with advanced 220V AC welding power supply, Suitable for battery pack spot welding and assembly in the factory. Lithium ion battery spot welding machine can assembling batteries like 18650, 21700, 26650, 32600 32700 etc and Nickel or Nickel-Plated Steel strips. Which support battery pack like E-Bike, Scooter etc.
Features
* This type of AC spot welder utilizes the general mains supply to lower the voltage and increase the electric current. Such kind of low voltage but large current will be transmitted from the electrode to the linked point of two work pieces.
* On the linkage, due to the resistance of work piece, high temperature will occur so the metal will therefore generates high heat to make the work pieces in molten condition.
Specification
|
Model No.: |
ACEY-1000C |
|
Energy storage capacitor |
6600UF |
|
Max output power of transformer |
18 KVA |
|
Output max short circuit current |
5000A |
|
Prewelding voltage |
80.0V -- 330V adjustable, accuracy 0.5V |
|
Welding voltage |
80.0V -- 330V adjustable, accuracy 0.5V |
|
Welding time |
1.0ms -- 20.0ms adjustable, accuracy: 0.1ms |
|
Applicable scope |
Max thickness of parallel welding: 0.03mm~0.2mm |
|
Machine weight |
40KG |
|
Dimensions |
350L x 180W x 280H (unit: mm) |
|
Input power supply |
single-phase AC220V/50Hz |
|
Input current |
< 5A |
|
Input power |
< 1200W |

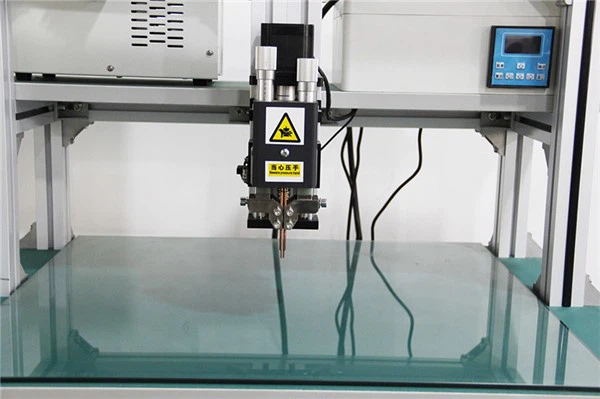

Product Details
Certifications
Cooperative Partner
